Help, my Edison the Petit isn't working! – Fatboy

Step 1. Has your 2-year guarantee expired?

Yes; Please go to step 2.
No; Contact the point of sale.

Step 2. Does the red light flash when charging?

Yes; Please go to step 3.

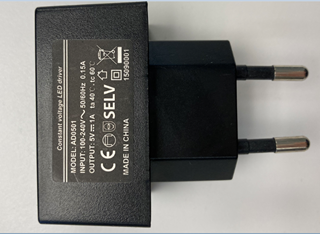

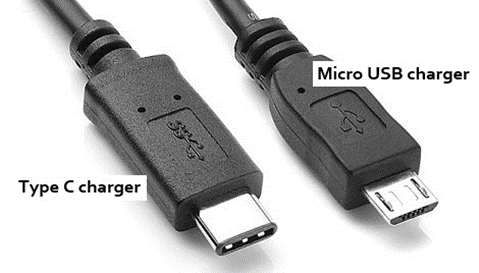

No; Try another charger (see photo specifications correct plug 5 V / 1Amp with cable C-type or micro USB).

Step 3. Remove the cap from the lamp. You do this by taking the shade of Edison the Petit under your arm and pulling on the base of the lamp. For more info, click here.

Check whether the white T-piece is correctly positioned in relation to the transparent plate that is attached to the thick LED rod. Do you hear a "click" when you press the white T-piece (with thin rod underneath)?

Yes; Please go to step 4
No; Reposition the white T-piece correctly above the transparent plate on the thick cylinder rod. Is the white T-piece broken? A new T-piece is required (repair kit Switch: Fatboy Repair kit - Edison the Petit Repair kit Switch).

Step 4. Is the thick cylinder rod still firmly positioned in the housing and is the transparent plate on which the white T-piece rests still intact and not broken off?

Yes; Please go to step 5.
No; A new optic, i.e. thick and thin cylinder rod, is required (repair kit Optic: Fatboy Repair kit - Edison the Petit Repair kit Optic)

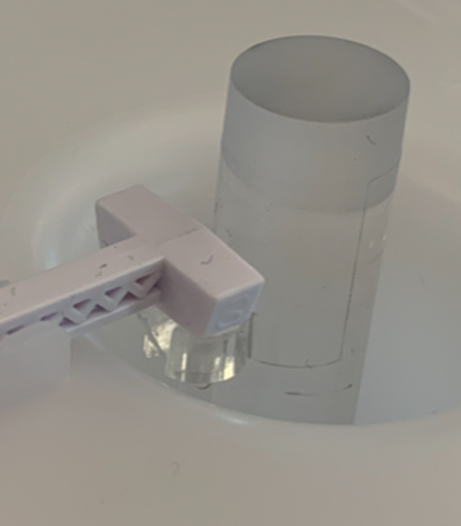

Correct version:

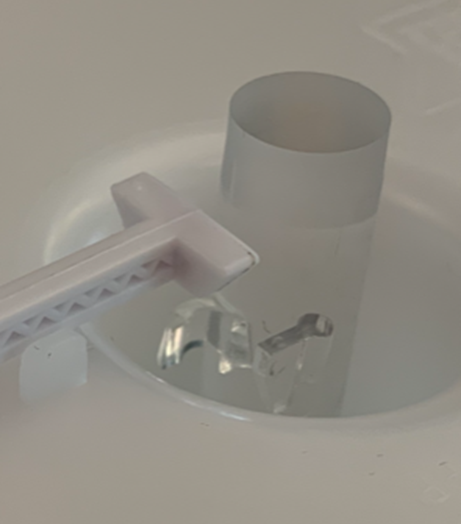

Defective version:

Step 5. Does Edison the Petit only switch on when it is connected to the charger? Or does the lamp blink briefly when connected to the charger? Or does the lamp switch off sooner than you are used to after it is fully charged (a new Edison the Petit should be able to burn for around 6 hours at 100% brightness)?

Yes; The battery is broken and must be replaced (repair kit Battery: Fatboy Repair kit - Edison the Petit Repair kit Battery )

No; Please go to step 6

Step 6. Does the Edison the Petit not switch on when the charging cable is connected? Does the USB port look damaged (it wobbles, is 'lame')?

Yes; The PCB is probably broken and needs to be replaced. Please note: this is only possible with type C USB port (repair kit PCB: Fatboy Repair kit - Edison the Petit Repair kit Printed Circuit Board (PCB))

No; Please contact our customer service. It is possible that you have moisture damage or another technical problem. We do not know whether this can be solved but we are happy give you our thoughts about it.
